Capstone Design Project Plan - PowerPoint PPT Presentation
Capstone Design Project Plan

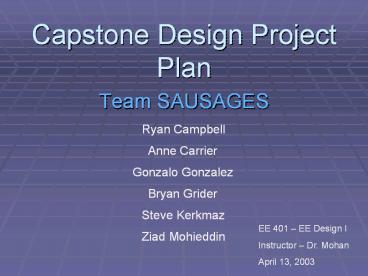

Capstone design project plan. team sausages. ryan campbell. anne carrier. gonzalo gonzalez ... obstacle free. problem statement and project objectives. solution ... – powerpoint ppt presentation.
- Team SAUSAGES
- IGVC Standards
- 0 to 8 kph speed range
- 2 to 5 m radius turns
- 3 m following distance
- No modification to Lead Vehicle
- Course Obstacles
- UDM Standards
- 1 m following distance
- Allowed to mount targets and sensors on Lead Vehicle
- Obstacle Free
- Pre-Built Systems
- Large Available Area
- Easily Modifiable
- Inexpensive
- Disadvantages
- Steering Control
- Traction Control
- Mount Conveyor Belt to Area of Contact with Ground
- Steering System
- Gear and Chain System
- Servo or Window Motor
- Interchangeable parts
- Small package
- 2 GB Maximum memory capacity
- Counter/Timers
- Used to create PWM signals
- Digital Lines
- Used for Ultrasound
- A/D converters
- Possibly used for backup sensors
- Donated by BOSCH
- Once in diagnostic mode, outputs 1 byte every 25 ms
- 1 bit 1 cm of distance
- SX28 Microcontroller interfaced with a OV6620 omnivision CMOS camera.
- 80 143 image Resolution.
- Dump images (color blobs).
- Track images at 17 frames / seconds.
- Find centroid of image.
- Adjust the cameras image properties.
- Ability to control a servo or use one Digital I/O pin.
- RS-232 serial or TTL data communication.
- Response to ambient and florescent light.
- Servos sensitivity to image tracking.
- Eyes for vehicle navigation.
- Preliminary steps for steering control.
- The black and white disk is for creating pulses.
- The reflected beam on the black segment will cause the sensor to output a signal (pulse).
- Each pulse corresponds to a specific distance traveled.
- The number of pulses in a given time will determine the speed.
- Number of pulses (n)
- Distance (n x)
- Speed Dist. / Time.
- Real-Time Workshop
- Stateflow Coder
- Designs complex control systems based on finite state machine theory.
- Represents the system logically and can eliminate the unnecessary states within the system.
- The basic structure of the flow diagrams is created in Stateflow by complex ifthen statements which allow the program to jump between two different algorithms .
- The Platooning Strategy must use our sensors to allow us to follow our project constraints.
- Our algorithm was developed using two algorithms.
PowerShow.com is a leading presentation sharing website. It has millions of presentations already uploaded and available with 1,000s more being uploaded by its users every day. Whatever your area of interest, here you’ll be able to find and view presentations you’ll love and possibly download. And, best of all, it is completely free and easy to use.
You might even have a presentation you’d like to share with others. If so, just upload it to PowerShow.com. We’ll convert it to an HTML5 slideshow that includes all the media types you’ve already added: audio, video, music, pictures, animations and transition effects. Then you can share it with your target audience as well as PowerShow.com’s millions of monthly visitors. And, again, it’s all free.
About the Developers
PowerShow.com is brought to you by CrystalGraphics , the award-winning developer and market-leading publisher of rich-media enhancement products for presentations. Our product offerings include millions of PowerPoint templates, diagrams, animated 3D characters and more.
